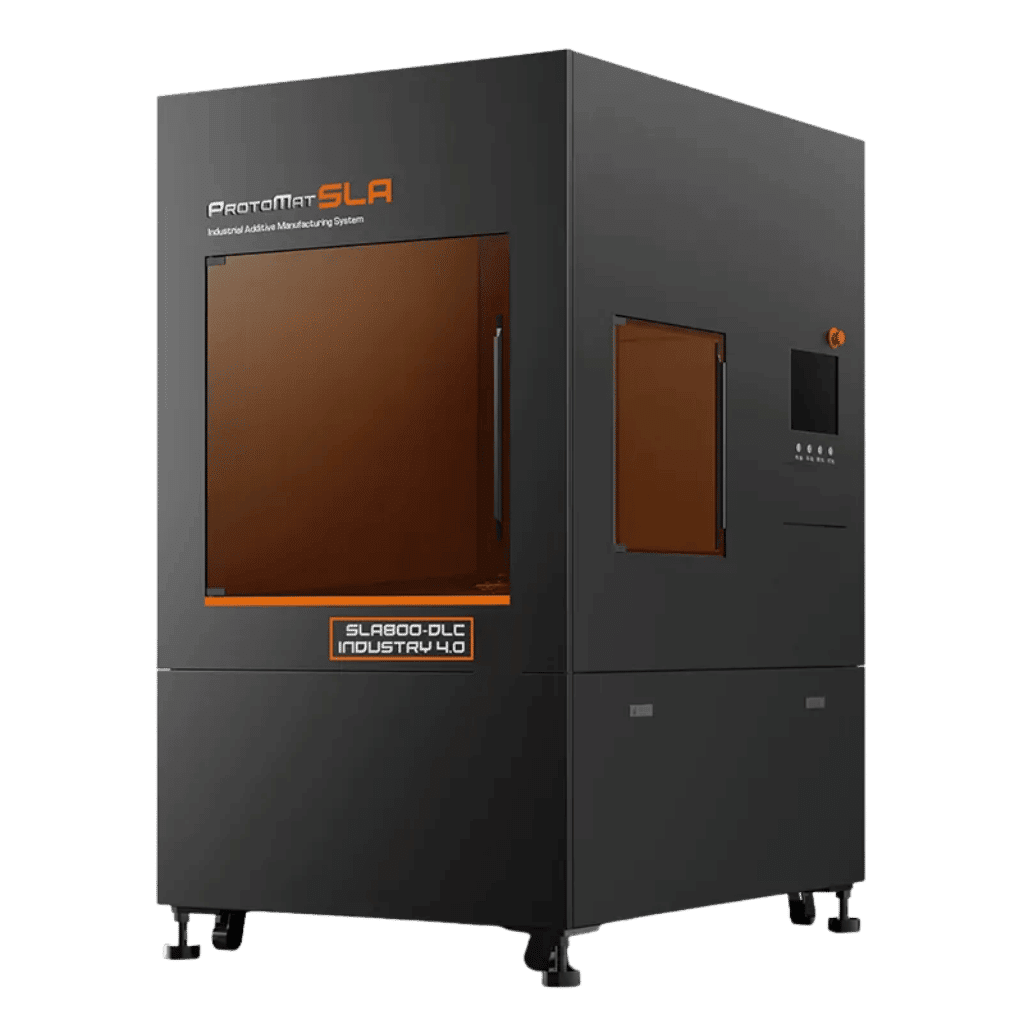

SLA800F-DLC

Cheap Resin SLA 3D Printer

Our industrial-grade SLA 3D printer, the 800F, uses advanced laser technology and is designed for high-speed, precision printing. It’s the optimal resin 3D printer for industrial applications, enabling high-quality, efficient, large-scale production.

Get a quote
Get a free sample

Equipment Details
cheap resin 3d printer 800F,a revlutin in prductivity

Compact & Cost-Effective Design

Optimized machine size with a small footprint, reducing transportation and operational costs. Structural integration ensures excellent stability, durability, and extended service life. Modular design simplifies maintenance and enhances after-sales service efficiency.

Comprehensive Upgrades for Precision

Enhanced optical, electrical, and control software systems paired with modern aesthetics. Ideal for small-batch production with superior detail, smooth surface finishes, and consistent quality.

Intelligent Control & Advanced Technology

World’s First Linux-Based Control System: Enables smarter, customizable operations. DLC Variable Laser Power Control: Boosts productivity with dynamic power adjustments. High-Speed Scanning Technology: Increases printing speeds by 20–100% through intelligent spot and power variability.

Unmanned Automation

Streamlined workflows eliminate manual supervision, supporting 24/7 continuous production.

SLA800F-DLC TECHNICAL DATA SHEET

Build Size (xyz)

800 x 800 x 550 mm (31.5 x 31.5 x 21.65 in)

Printing Speed

75-180g/h

Scanning Speed

15.0m/s (Maximum)

Accuracy

Part Size< 100 mm(3.9 in): ±0.1 mm(±0.004 in)

Part Size≥ 100 mm(3.9 in):±0.1% x L

Layer Thickness

0.1 mm (0.004 in)

Laser Type

Diode-pumped solid-state laser Nd:YVO4

Optical System

SCANLAB Galvanometer Scanner

Beam Size: 0.12 - 0.2 mm

Operating Software

Sirius Intelligent Printing Control Software / Linux or Windows (Optional)

CAD Interface

STL Format Files

Machine Size W x D x H

1.33m(W)×1.72m(D)×2.33m(H) (52.36 x 67.71 x 91.73 in)

Ambient Temperature

22-25ºC (71.6-77℉)

Relative Humidity

Less than 40%

Power Requirements

200-240VAC 50/60Hz Single Phase 16A
